Airseeder Head Blockage Monitor Kit
Airseeder Head Blockage Monitor Kit
Airseeder Head Blockage Monitor Kit
Airseeder Head Blockage Monitor Kit
Airseeder Head Blockage Monitor Kit
Airseeder Head Blockage Monitor Kit
Airseeder Head Blockage Monitor Kit

Airseeder Head Blockage Monitor Kit

$2,600.00

Price excludes GST


Quantity:

NO MORE COSTLY UNSOWN STRIPS!

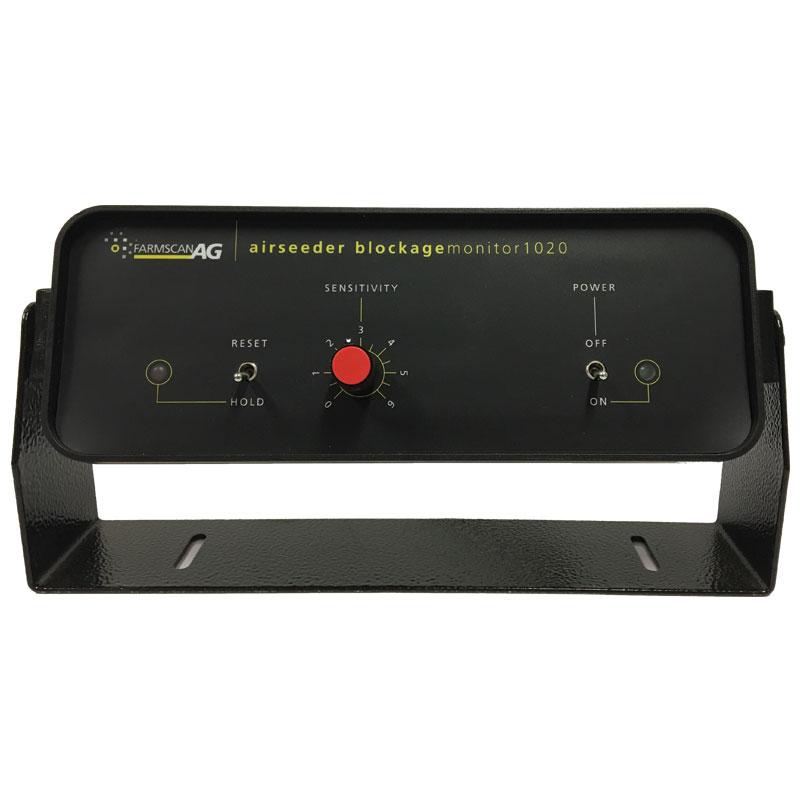

Day or night there’s no need to continually check your machine. The 1020 monitor warns you before major blockages end up costing you time and money!
The result is much less downtime, faster seeding and complete peace of mind.
The sensors are a proven performer with thousands of systems in operation. It can pay for itself fast!

*  Now with remote run/hold feature when lifting bar out of the ground
*  Bin Control (on/off)
*  Better power management for low voltage tractors or longer implements
*  Dual shoot systems now allow for individual bin control (on/off) - only one monitor required
*  Cabling has been updated to Deutsch style connectors

Ordering Options:

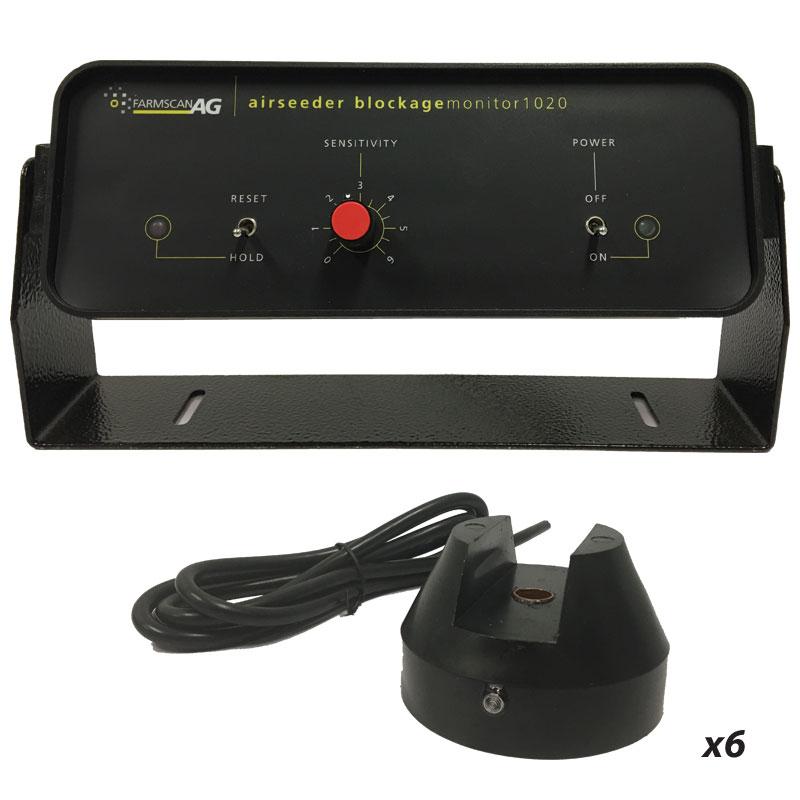

1020 - Single Shoot Kit:

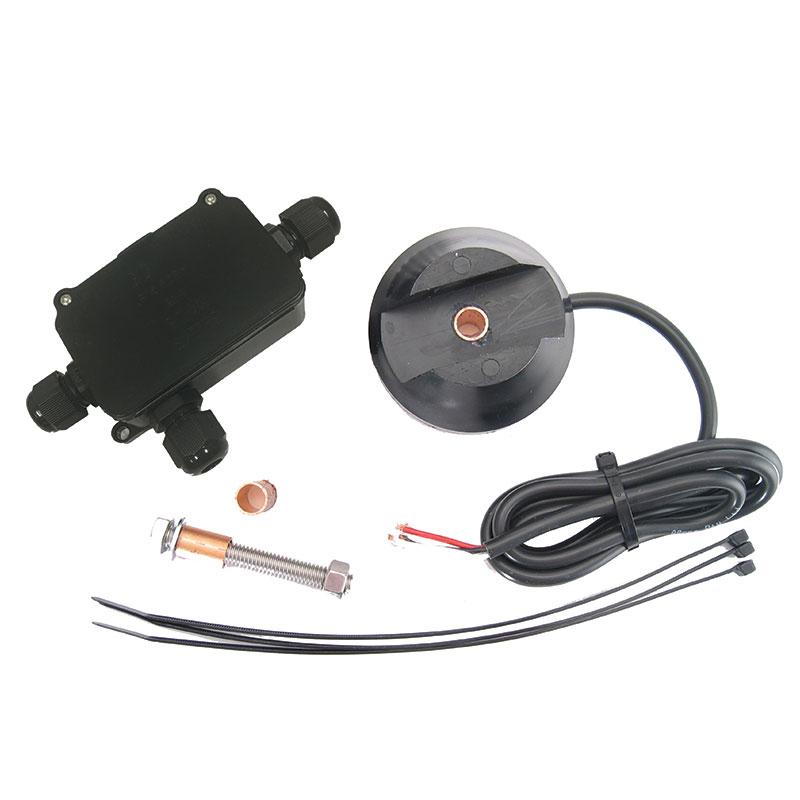

This kit Includes 1 x 1020 Monitor and 6 x 1021 Head Sensors to allow monitoring of seed and fertiliser distribution on one machine. Order additional 1021 Sensors as required. (Max 12), 1x Roll 3 Core 30m cable, cable ties, junction boxes, power cable, mounting bracket

1020T - Twin Shoot Kit:
This kit Includes 1 x 1020 Monitor and 12 x 1021 Head Sensors to allow individual monitoring of seed and fertiliser distribution on one machine. Order additional 1021 Sensors as required. (Max 24), 1x Roll 3 Core 50m cable, cable ties, junction boxes, power cable, mounting bracket.
NB : Bin Level Sensors are no longer sold or supported with the 1020. - Try our camera systems instead.

How it Works:

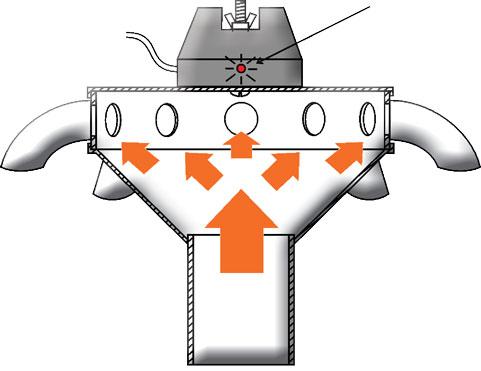

The fully sealed impact sensors equipped with a bright red LED are bolted to each primary or secondary distribution head. (Rubber caps recommended).

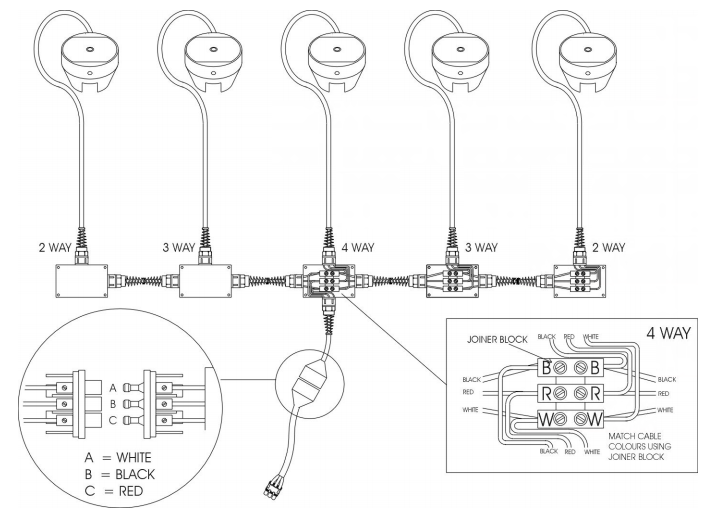

Sensors are then interconnected on a simple party line cable that runs across the implement, avoiding the need for messy separate wires to each sensor.

As material flows, the sensor listens to the sound level according to sowing rates of seed and/or fertiliser, all the operator adjusts is the sensitivity control knob until the cab warning light remains just off – simple as that!

A drop in flowrate or blockage at any primary head will activate the red LED at the sensor causing the cab alarm and warning light to activate.

By switching to Hold, the operator can freeze the system and a quick inspection of all sensors will immediately pinpoint the problem.

The system assists in picking many other problems with airseeders such as fan too slow or not engaged, disconnected and blocked primary hoses, lids not properly shut, empty bins, broken drives etc.
